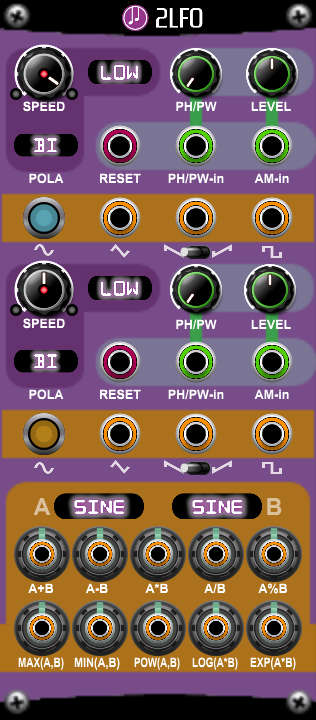

RFM_2LFO is a dual LFO module with extra functions.

SPEED
The SPEED dial has range control (LOW, MID. HI) to have more control over the range (0 Hz – 1 Hz, 1 Hz – 5 Hz and 5 Hz- 15 Hz.
SHIFT-LEFT-Click the SPEED dial to switch between free speed setting or note-length settings (1/8, 1/4 etc) that will SYNC to the host.

POLA

Further there’s BI, NEG(ative) or POS(itive) polarization setting for the waves.

LEVEL
Level knob sets the ouput level of the LFO.
Use the input below the LEVEL kno to amplitude modulate the signal.

FM
The FM knob and associated input can be used to frequency modulate the LFO signal.

RESET
Use the RESET input  to make sure that waves are reset to their starting point when needed.

OUTPUTS
Find outputs for SINE, TRIANGLE, SQUARE wave or SAW / RAMP (switchable).
